The most versatile replacement pump of all time.
The Wilo-Varios PICO-STG is the universal solution for replacement heating, air conditioning and cooling systems for residential use. In addition to providing standard and external control operation, the settings of the replaced pump can be easily adopted thanks to the synchronization assistant. Thanks to its compact design and synchronization function, the characteristic curves of the old pump can be adopted, making installation and commissioning extremely easy. It is also very comfortable to use thanks to the green button technology.
Features/Product benefits
- Compact design, new control types (such as iPWM) and synchronization assistant make it the perfect replacement solution for all applications, including solar and geothermal energy.
- Maximum ease of use thanks to the LED display and Green Button Technology with a button for regulation operation and a button for setting the pump.
- Easy installation thanks to compact design, adaptable electrical connections and maintenance functions such as air purge
- Highest operational and usage safety thanks to proven technology

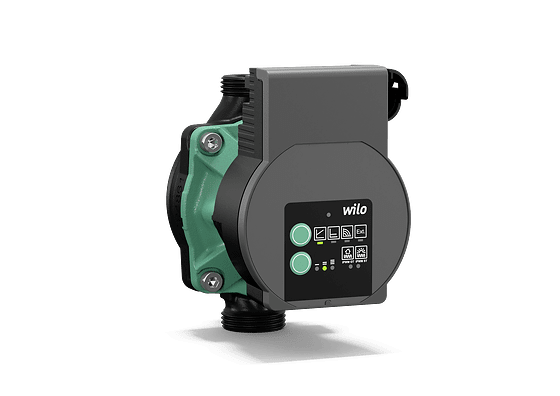

Wilo Varios PICO STG
Construction
Glandless rotor circulation pump with screw connection, anti-blocking current EC motor and integrated electronic performance regulation.
APPLICATION
Hot water heaters of all systems, air conditioning applications, industrial circulation systems, primary circuits in solar energy and geothermal plants.
Hardware / function
Types of operation
- Constant differential pressure (3 predefined characteristic curves)
- Variable differential pressure (3 predefined characteristic curves)
- Fixed speed (3 speed levels)
- External regulation with iPWM signal
- iPWM GT (heater/geotherm, not in Varios PICO-STG .../1-13)
- iPWM ST (solar)
Manual functions
- Operating type setting according to application
- Pump power setting (Characteristic curve)
- Fixed speed setting
- Activation of synchronization function and LED coding
- Air release function
- Manual restart
Automatic functions
- Automatic restart
Signal and indicator functions
- Display of the selected regulation type
- Display of the selected characteristic curve or iPWM type within the regulation type
- Activated synchronization function and LED coding indication
- Manual restart or air purge function status indicator
- Operation and fault indication
Hardware
- Cataphoresis coated pump body
- Mounting wrench location on pump body
- Electrical connection cable with 3-pole pump plug and Wilo-Connector
- IPWM connection
- Air release function
- Manual restart
- Blocking current resistant motor
- Particle filter
Type coding
Example: | Wilo-Varios PICO-STG 25/1-8-130 |
Varios PICO | High efficiency pump (Pump with coupling), electronically regulated |
-STG | Compatible with heater, solar energy and geothermal applications |
25/ | Nominal connection diameter |
1-8 | Nominal head range [m] |
130 | Building height |
Technical data
- Fluid temperature: -20 °C to +110 °C
- Mains connection: 1~230 V, 50 Hz
- Protection class: IPX4D
- Union connection: G1, G1½, G2
- Maximum operating pressure: 10 bar
Materials
- Pump body: Gray cast iron (EN-GJL-200)
- Impeller: Plastic (PP - 40% GF)
- Pump shaft: Stainless steel
- Bed: Metal impregnated coal
Scope of delivery
- Pump
- 3-pole pump plug cable and Wilo-Connector connection
- Wilo Connector
- Gaskets
- Installation and user manual
Options
- Varios PICO-STG ...-130 models, short length 130 mm
Accessories
- Union connections
- Adapter parts
- Heat insulation
- iPWM signal cable
- Wilo-Connector with 2 m connection cable and earthed plug
- Angled plug with 2 m long connection cable
| Select Model | : | Varios PICO |
