Structure

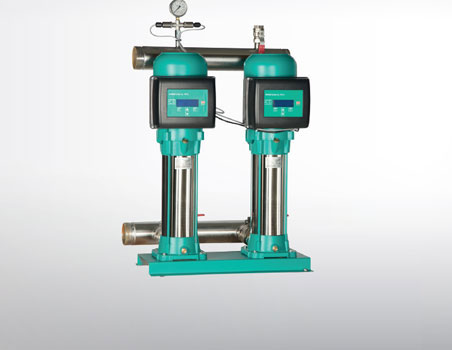

Multi-stage, vertical type, integrated frequency converter, pump package hydrophore
APPLICATIONThey are fully hygienic, comfortable, silent, LCD screen package hydrophores prepared for the pressurized water needs of individual and collective settlements.
Thanks to the integrated frequency converter, energy saving is achieved by adjusting the pump speed according to the system pressure.
Pumps are activated in a controlled manner according to the pressure requirement of the facility (rotation). At this point, converters will calculate the motor rotation speeds to provide maximum energy saving while maintaining the operating pressure.
Easy to start thanks to the start-up assistance
Pumps automatically back up each other
Collectors are stainless steel
Thanks to the pressure sensors as many as the number of pumps, the system will not be interrupted in case one of the sensors breaks down.
Max. fluid temperature 45 °C
Grid connection 1~230V, 50Hz, 3~400V, 50Hz
Protection / Insulation F
Motor protection class IP55
Scope of Delivery:
2 x Smart Pump (With Frequency Converter)
1 x Floater
2 x Pressure Sensor
1 x Suction Collector (Stainless)
1 x Pressure Collector (Stainless)
4 x Shut-off Valves
2 x Check Valves
2 x Manometer
4 x Vibration Wedges
| Model | Nominal Power-P2 | Product Code | |
|---|---|---|---|
| (HP) | (kW) | ||
| Initial Hi-Smart 2-304-3/16/M/E-1,1 | 2x1.5 | 2x1,1 | 2927519 |
| Initial Hi-Smart 2-305-3/16/M/E-1.5 | 2x2 | 2x1.5 | 2927520 |
| Initial Hi-Smart 2-306-3/16/M/E-2,2 | 2x3 | 2x2,2 | 2927521 |
| Initial Hi-Smart 2-307-3/16/M/E-2,2 | 2x3 | 2x2,2 | 2927522 |
| Initial Hi-Smart 2-308-3/16/T/E-3 | 2x4 | 2x3 | 2927523 |
| Initial Hi-Smart 2-309-3/16/T/E-3 | 2x4 | 2x3 | 2927524 |
| Initial Hi-Smart 2-310-3/16/T/E-4 | 2x5.5 | 2x4 | 2927525 |
| Initial Hi-Smart 2-405-3/16/T/E-3 | 2x4 | 2x3 | 2927526 |
| Initial Hi-Smart 2-406-3/16/T/E-3 | 2x4 | 2x3 | 2927527 |
| Initial Hi-Smart 2-407-3/16/T/E-4 | 2x5.5 | 2x4 | 2927528 |
