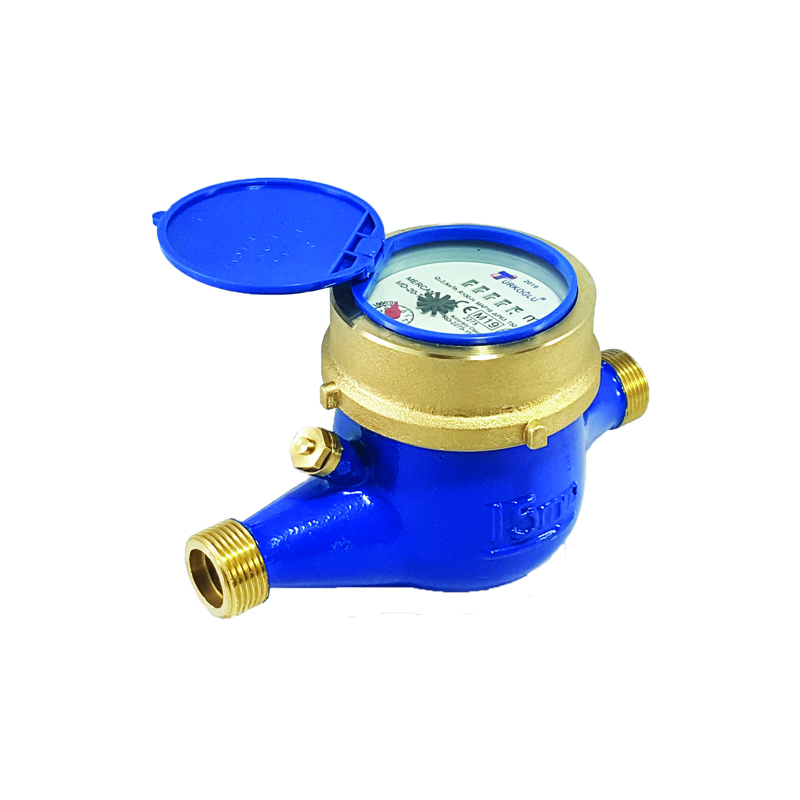

General Features:
- MID (Measuring Instruments Directive) Certified
- Multi-beam dry type mechanism
- Brass body material
- Durable, removable, with built-in strainer and check valve
- Removable measuring mechanism
- Metrological measuring range – Horizontal- R100
- 360º rotating top cover
- Magnetically protected mechanism
- Brass top cover material
- High resistance to water pollution
- Compatible with optical direct reading
- Electrostatic e/p interior and exterior powder painted body
- External adjustable screw
- For cold water up to 50ºC
- QR code for data display (optional)
- Pulse output, Mbus (wired, wireless), RF (optional)
- 10 years of spare parts and service provision
- 2 year warranty
| Performance Features | Metrological Properties | Nominal Diameter | DN | mm | 15 | |||
| You | Inch | 1/2'' | ||||||
| Maximum Flow Rate (m 3 /h) | Q4 | ≤3.13 | ||||||
| Continuous Flow Rate (m 3 /h) | Q3 | ≤2.50 | ||||||
| Transition Flow Rate ( m3 /h) T. ± 2% | Q2 | ≥ 0.040 | ||||||
| Minimum Flow Rate ( m3 /h) T. ± 5% | Q1 | ≥0.025 | ||||||
| Continuous Flow Rate Measurement Range (R) | Q3 / Q1 | R100 | ||||||
| Transitional Flow Rate Measuring Range | Q2 / Q1 | 1.6 | ||||||
| Maximum Flow Rate Measurement Range | Q4 /Q3 | 1.25 | ||||||
| Accuracy Class | 2 | |||||||
| Technical Specifications | Minimum Maximum Allowed Error | (MPE1) | ±5% | |||||
| Maximum Allowed Error | (MPEU) | ±2% for water with temperature ≤30°C ±3% for water with temperature >30°C | ||||||
| Temperature Class | T °C | T30 and T50 | ||||||
| Water Pressure Class | MAP (Bar) | 16 | ||||||
| Pressure Loss Class | ∆P (Bar) | 0.63 | ||||||
| Maximum Recording Capacity | m3 | 99 999 | ||||||
| Control Scale Range | [ m3 ] | 0.00005 | ||||||
| Installation Connection Type | Horizontal | |||||||
| Flow Profile Sensitivity Classes | U0,D0 | |||||||
| Impulse Value | liter/pulse | 1, 10, 100, 1000 | ||||||
| Module Type (Optional) | Pulse, MBus (Wired, Wireless), RF, AMR | |||||||
 | MATERIEL | |||||
| 1 | BODY (BRASS) | |||||
| 2 | LID | |||||
| 3 | PINE | |||||
| 4 | MECHANISM COVER (BRASS) | |||||
| 5 | GASKET | |||||
| 6 | DIAL / MECHANISM | |||||
| 7 | CENTRAL GEAR | |||||
| 8 | ANTIMAGNETIC METAL RING | |||||
| 9 | CLAMP MATERIAL | |||||
| 10 | TURBINE / PROPELLER | |||||
| 11 | PROPELLER CHAMBER | |||||
| 12 | ADJUSTING SCREW | |||||
| 13 | ADJUSTMENT SCREW COVER | |||||
| 14 | FILTER | |||||
| 15 | CHECK VALVE | |||||
| Select Size | : | DN15 ½" |
