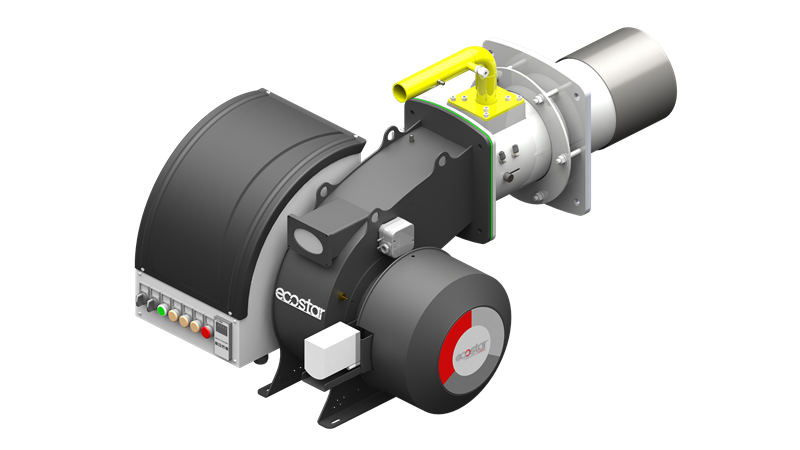

ECO 4500 HP GC 2
- Two-stage operation,
- Ability to work with natural gas and LPG fuel,
- Operation at 300 mbar & 21 mbar gas pressures,
- Wide thermal capacity adjustment range according to heat requirement,
- Direct ignition and optional pilot ignition option,
- Flame control with ignition and ionization electrode,
- Control of sufficient gas pressure with minimum gas pressure switch,
- Unique combustion head with high combustion efficiency and uniform fuel mixture,
- Control of combustion air with air pressure switch,
- Minimum friction losses in the body and combustion head,
- Easy access to all parts without removing the burner from the boiler,
- Compact design requiring minimum maintenance,
- Environmentally friendly with low NOx and CO emissions.
- Lower noise level with special silencer system,
- Operation at low noise levels thanks to the specially designed burner body.
- Ease of maintenance with the hinged system without the need to separate the burner from the boiler,
| Burner Type | Capacity | Capacity | Natural Gas Consumption | Fan Motor Power | Voltage at 50 Hz | Gas Inlet Diameter | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Minimum kcal/h | Maximum kcal/h | Minimum kW | Maximum kW | Minimum Nm³/h | Max. Nm³/h | kW | VAC | Gas Valve | Gas Inlet Diameter | |
| ECO 4500 HP GC 2 1 1/2" -S | 645.00 | 3,870,000 | 750 | 4500 | 78 | 469 | 7.5 | 3N 400 | VGD 20.4011 | 1 1/2" |
| ECO 4500 HP GC 2 2" -S | VGD 20.5011 | 2" | ||||||||
| ECO 4500 HP GC 2 DN65 | VGD 40.065 | DN65 | ||||||||
| ECO 4500 HP GC 2 DN80 | VGD 40,080 | DN80 | ||||||||
| ECO 4500 HP GC 2 DN100 | VGD 40.0100 | DN100 | ||||||||
| ECO 4500 HP GC 2 DN125 | VGD 40.0125 | DN125 | ||||||||
