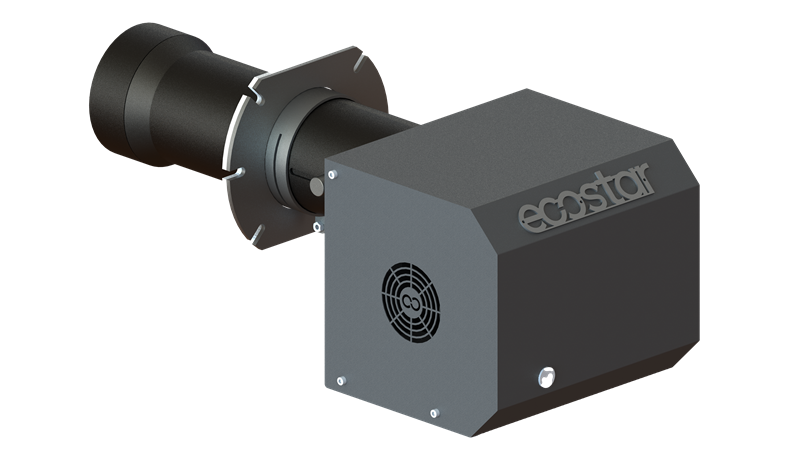

ECO 200 HP GC 3
- Proportional work,
- Mechanical, pneumatic or electronic proportional control options,
- Ability to work with natural gas and LPG fuel,
- Operation possibility of 300 mbar and 21 mbar gas pressure,
- Wide thermal capacity adjustment range according to heat requirement,
- Direct ignition and optional pilot ignition option,
- Flame control with ignition and ionization electrode,
- Control of sufficient gas pressure with minimum gas pressure switch,
- Unique combustion head with high combustion efficiency and uniform fuel mixture,
- Control of combustion air with air pressure switch,
- Minimum friction losses in the body and combustion head,
- Easy access to all parts without removing the burner from the boiler,
- Compact design requiring minimum maintenance,
- Environmentally friendly with low NOx and CO emissions.
- Operation at low noise levels thanks to the specially designed burner body.
- Combustion air flow adjustment with internal fan damper,
| Burner Type | Capacity | Capacity | Natural Gas Consumption | Fan Motor Power | Voltage at 50 Hz | Gas Inlet Diameter | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Minimum kcal/h | Maximum kcal/h | Minimum kW | Maximum kW | Minimum Nm³/h | Max. Nm³/h | kW | VAC | Gas Valve | Gas Inlet Diameter | |
| ECO 200 HP GC 3 1/2" | 68,800 | 172,000 | 80 | 200 | 8 | 21 | 0.2 | 1N 230 | MB-DLE 405 | 1/2" |
| ECO 200 HP GC 3 3/4" | MB-DLE 407 | 3/4" | ||||||||
