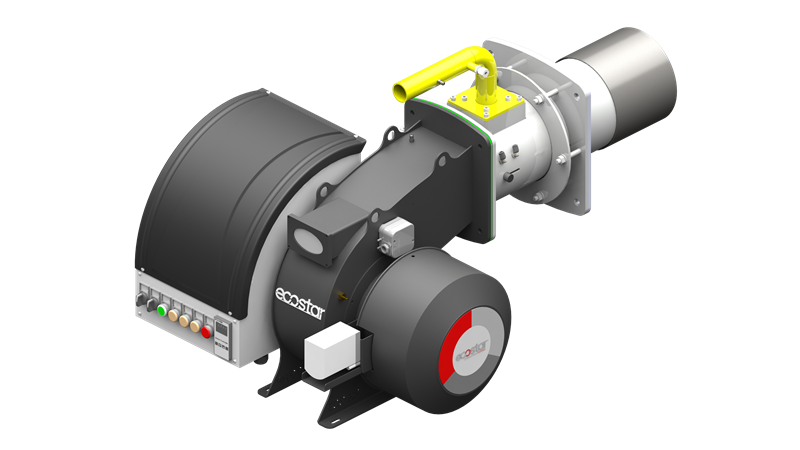

ECO 1500 HP GC 3

  • Proportional work,
  • Mechanical, pneumatic or electronic proportional control options,
  • Ability to work with natural gas and LPG fuel,
  • Operation possibility of 300 mbar and 21 mbar gas pressure,
  • Wide thermal capacity adjustment range according to heat requirement,
  • Direct ignition and optional pilot ignition option,
  • Flame control with ignition and ionization electrode,
  • Control of sufficient gas pressure with minimum gas pressure switch,
  • Unique combustion head with high combustion efficiency and uniform fuel mixture,
  • Control of combustion air with air pressure switch,
  • Minimum friction losses in the body and combustion head,
  • Easy access to all parts without removing the burner from the boiler,
  • Compact design requiring minimum maintenance,
  • Environmentally friendly with low NOx and CO emissions.
  • Ease of maintenance with the hinged system without the need to separate the burner from the boiler,
  • Lower noise level with special silencer system,
  • Operation at low noise levels thanks to the specially designed burner body.




Burner Type Capacity Capacity Natural Gas Consumption Fan Motor Power Voltage at 50 Hz Gas Inlet Diameter
Minimum kcal/h Maximum kcal/h Minimum kW Maximum kW Minimum Nm³/h Max. Nm³/h kW VAC Gas Valve Gas Inlet Diameter
ECO 1500 HP G C3P 1 1/2" -S 301,000 1,290,000 350 1,500 36 156 1.5 3N 400 VGD 20.4011 1 1/2"
ECO 1500 HP G C3P 2" -S VGD 20.5011 2"
