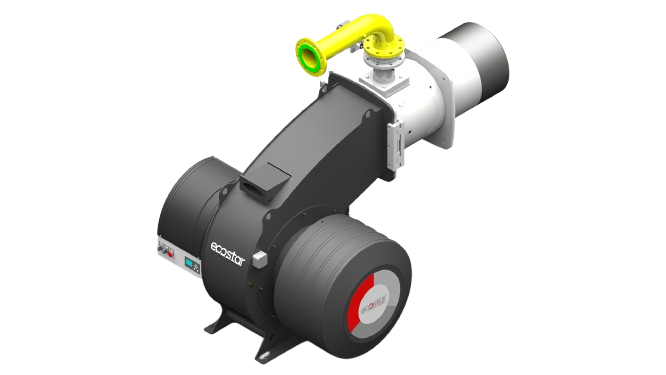

ECO 11000 HP GC 3
- Proportional work,
- Mechanical, pneumatic or electronic proportional control options,
- Ability to work with natural gas and LPG fuel,
- Operation possibility of 300 mbar and 21 mbar gas pressure,
- Wide thermal capacity adjustment range according to heat requirement,
- Direct ignition and optional pilot ignition option,
- Flame control with ignition and ionization electrode,
- Control of sufficient gas pressure with minimum gas pressure switch,
- Unique combustion head with high combustion efficiency and uniform fuel mixture,
- Control of combustion air with air pressure switch,
- Minimum friction losses in the body and combustion head,
- Easy access to all parts without removing the burner from the boiler,
- Compact design requiring minimum maintenance,
- Environmentally friendly with low NOx and CO emissions.
- Lower noise level with special silencer system,
- Ease of maintenance with the hinged system without the need to separate the burner from the boiler,
- Operation at low noise levels thanks to the specially designed burner.
| Burner Type | Capacity | Capacity | Natural Gas Consumption | Fan Motor Power | Voltage at 50 Hz | Gas Inlet Diameter | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Minimum kcal/h | Maximum kcal/h | Minimum kW | Maximum kW | Minimum Nm³/h | Max. Nm³/h | kW | VAC | Gas Valve | Gas Inlet Diameter | |
| ECO 11000 HP GC 3 | 774,000 | 9,460,000 | 900 | 11,000 | 93.82 | 1146.67 | 22 | 3N 400 | VGD40.065 | DN65 |
| VGD40.080 | DN80 | |||||||||
| VGD40.100 | DN100 | |||||||||
| VGD40.125 | DN125 | |||||||||
