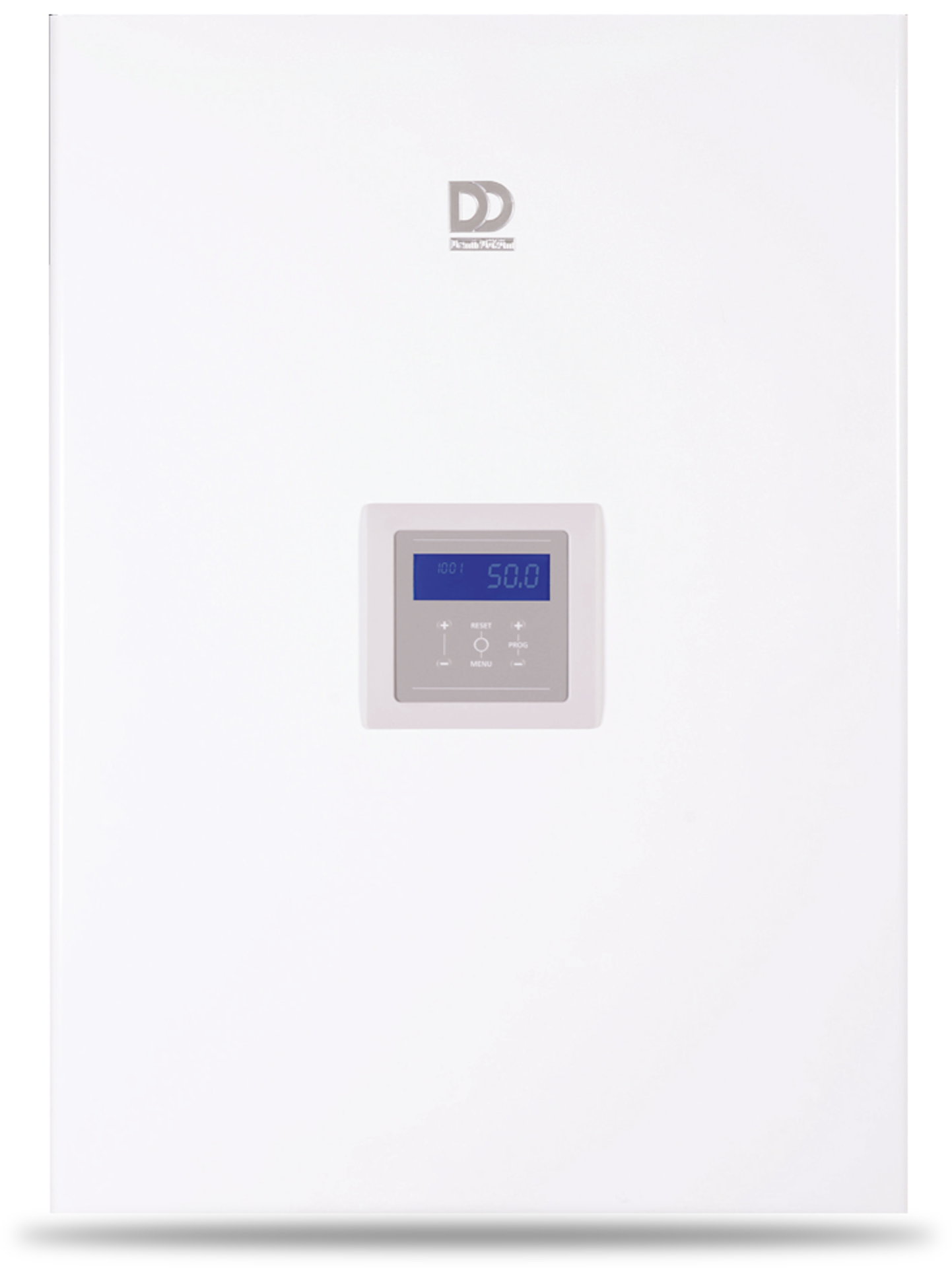

DemirDöküm MaxiCondense 110 - 150
Wall Mounted Condensing Boiler
- Stainless Steel Heat Exchanger
- Premix Burner
- Modulating Fan
- Integrated Valve
Maximum Efficiency for High Capacity Needs DemirDöküm MaxiCondense 110 - 150 Of course!

Environmentally Friendly
It provides low flue gas temperature and low emission release, protecting the environment by burning the gas and air mixed in a perfect ratio in the most efficient way in the specially designed premix burner.

High Energy Efficiency and Low Consumption
Thanks to the premix exchanger, it provides maximum efficiency up to 109% and minimum heat loss. As a result of condensation, the difference between the system return temperature and the flue gas temperature is 3°C. (98% Seasonal Efficiency*)

6 bar Operating Pressure
Provides use in high-rise buildings.

Integrated Chimney Valve
Thanks to the integrated valve inside the device, the safe cascade system provides easy and low-cost installation.

Integrated Control Panel on Every Device
All MaxiCondense 110 - 150 Wall Type Boilers have an integrated control panel. In case of any problem experienced in the master device, other devices can be used as master devices, providing easy/low cost installation and long-lasting use.

Possibility of Increasing Capacity to 9,088 kW
It offers a high capacity of up to 9,088 kW in total, with the ability to cascade up to 64 devices.

Integrated into BMS System
It provides control from a single point thanks to its connection to smart home automation systems via ModBus protocol without requiring an extra interconnect adapter.

Compact Dimensions
DemirDöküm MaxiCondense Wall Mounted Condensing Boilers save space thanks to their ergonomic and compact dimensions.

Stainless Steel Heat Exchanger
With the extra reinforced stainless steel heat exchanger, it provides lower flue gas temperature, more condensation and longer life.

Modulating High Efficiency Pump
Thanks to the high efficiency pump, the pump speed is automatically adjusted according to the installation needs. In this way, low electricity consumption is provided.

Spouse Aging
Each unit operates in a cascade system with variable heat loads. When the first unit reaches a certain efficiency, the next module operates in a cascade system. The control unit on the master device designed for this purpose provides high efficiency and long-lasting use thanks to the equal use of each device in the system.

Hermetic Chimney Connection Possibility
It provides easy installation thanks to both hermetic (type c) and standard flue (type b) types. It offers installation opportunity with original hermetic flues that eliminate the need for ventilation in the boiler room.
Model | Unit | MaxiCondense 110 B | MaxiCondense 110 C | MaxiCondense 150 B | MaxiCondense 150 C |
---|---|---|---|---|---|
Device Input Energy (Max. - Min.) | kW | 97 / 19, 4 | 97 / 19, 4 | 131 / 26.2 | 131 / 26.2 |
Device Output Energy (80/60°C) (Max. - Min.) | kW | 95.3 / 19.2 | 95.3 / 19.2 | 129 / 26 | 129 / 26 |
Device Output Energy (50/30°C) (Max.) | kW | 105.1 | 105.1 | 142.1 | 142.1 |
Device Output Energy (60/40°C) (Max.) | kW | 101.1 | 101.1 | 137.3 | 137.3 |
Yield at 80/60°C | % | 97.9 | 97.9 | 97.9 | 97.9 |
Efficiency at 30% Capacity | % | 108.8 | 108.8 | 108.9 | 108.9 |
Burner and Chimney Losses at 80/60°C | % | 2.6 | 2.6 | 2.6 | 2.6 |
Burner and Chimney Losses at 30% Capacity (at 50/30°C) | % | 0.6 | 0.6 | 0.6 | 0.6 |
Heat Loss in Standby Mode | W % | 124 0.1 | 124 0.1 | 168 0.1 | 168 0.1 |
Device Types | B23, B53; B53P | C13, C33, C53 | B23, B53; B53P | C13, C33, C53 | |
Gas Category | G 20 | G 20 | G 20 | G 20 | |
Device Category | I2H | I2H | I2H | I2H | |
Combustion Chamber | Vertical | Vertical | Vertical | Vertical | |
Sound Power | dB(A) | 56 | 56 | 57 | 57 |
Emission Nox (En 15502) | mg/kWh | 38.7 | 38.7 | 46.1 | 46.1 |
Emission Min. – Max. Power (G20) Co2 | % | 9 – 9 | 9 – 9 | 9 – 9 | 9 – 9 |
Emission Min. – Max. Power (G20) Co | ppm | 91.5 / 7.5 | 91.5 / 7.5 | 91.5 / 5.6 | 91.5 / 5.6 |
Waste Gas Temperature Min. – Max. Power (80/60°C) | °C | 78 / 62 | 78 / 62 | 77 / 61 | 77 / 61 |
Waste Gas Temperature Min. – Max. Power (50/30°C) | °C | 49 / 35 | 49 / 35 | 48 / 35 | 48 / 35 |
Waste Gas Flow Rate (Sea Level Atmospheric Pressure) | kg/s | 0.046 | 0.046 | 0.06 | 0.06 |
Device Internal Resistance (Δt = 20°C) | mbar | 210 | 210 | 510 | 510 |
Remaining discharge height on the installation side (Δt = 20°C) | mbar | 370 | 370 | 570 | 570 |
Max. – Min. Gas Consumption (G 20) | m³/h | 2.06 - 10.3 | 2.06 - 10.3 | 2.78 - 14 | 2.78 - 14 |
Maximum Withstand Pressure | bar | 6 | 6 | 6 | 6 |
Minimum Working Pressure | bar | 0.7 | 0.7 | 0.7 | 0.7 |
Maximum Limit Thermostat Temperature | °C | 95 | 95 | 95 | 95 |
Setting Temperature (Min. – Max.) | °C | 30 - 80 | 30 - 80 | 30 - 80 | 30 - 80 |
Amount of Water in the Device | lt | 17 | 17 | 25 | 25 |
Maximum Condensate Water Flow (50/30°C) | l/h | 15 | 15 | 19.8 | 19.8 |
