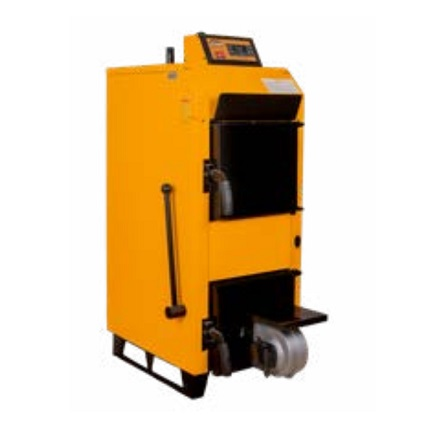

BERUSSA / BRS
FUEL TYPE: Wood, Coal and Forest Products
HEATING SYSTEM: Three-Pass Buffle System
FUEL LOADING: Manual Loading
ASH DISCHARGE: Movable Cast Iron Grate
CONTROL SYSTEM: Digital LCD Display
MODERN DESIGN AND HIGH EFFICIENCY
Berussa automatic boilers provide ergonomic design, piped ventilation system and ideal water circulation.
Fuel is fed to the combustion pot automatically.
BURNING CONTROL FROM DIGITAL SCREEN
In Berussa boilers, water temperature and fan speed can be adjusted from the digital display.
With the help of the fan, the desired temperature is reached in a short time. Then the fan automatically turns off and the boiler goes into sleep mode.
LONG-LASTING SHEET METAL AND BODY
Berussa boilers are produced to high quality standards with 50 years of experience and each one is tested under 4.2 bar pressure.
EASY FUEL LOADING AND CLEANING WITH WIDE COVERS
The boiler can be operated for a long time without refilling thanks to its large fuel tank. Easy cleaning is possible with its detachable side pot.
| MODEL | BRS-25 | BRS-40 | BRS-60 | BRS-80 | BRS-100 | BRS-150 | BRS-200 |
|---|---|---|---|---|---|---|---|
| Capacity (Kw) | 29 | 49 | 70 | 93 | 115 | 175 | 233 |
| Kcal/h | 25000 | 40000 | 60000 | 80000 | 100000 | 150000 | 200000 |
| Water Volume (Lt) | 80 | 115 | 130 | 140 | 180 | 260 | 360 |
| Weight (kg) | 215 | 270 | 350 | 390 | 510 | 640 | 740 |
| Fuel Loading Port mm x mm | 335x305 | 410x305 | 470x345 | 470x345 | 550 x 305 | 550x320 | 550x320 |
| Boiler Water Control Range °C | 45-90 °C | 45-90 °C | 45-90 °C | 45-90 °C | 45-90 °C | 45-90 °C | 45-90 °C |
| Max. Operating temperature °C | 90 °C | 90 °C | 90 °C | 90 °C | 90 °C | 90 °C | 90 °C |
| Chimney Diameter (mm) Ø | 160 | 160 | 180 | 180 | 200 | 220 | 220 |
| Electricity Supply | 230V 50Hz | 230V 50Hz | 230V 50Hz | 230V 50Hz | 230V 50Hz | 230V 50Hz | 230V 50Hz |
| Water Intake Ø (R) | 1/2'' | 1/2'' | 1/2'' | 1/2'' | 1/2'' | 1/2'' | 1/2'' |
| Hot water flow - return Ø (r) | 1" | 1 1/4” | 1 1/4” | 1 1/2” | 1 1/2” | 2" | 2" |
| Expansion round trip Ø (r) | 1" | 1” | 1 1/4” | 1 1/4” | 1 1/4” | 1 1/2” | 1 1/2” |
| Height (mm) | 1290 | 1240 | 1340 | 1340 | 1570 | 1650 | 1735 |
| Width (mm) | 490 | 590 | 650 | 650 | 735 | 735 | 735 |
| Depth (mm) | 850 | 980 | 1080 | 1230 | 1400 | 1535 | 1700 |
| Fuel Tank Capacity Coal kg | 40 | 50 | 60 | 80 | 120 | 150 | 180 |
| Heating Capacity | : | 100kW |
| Loading Type | : | Manual Loading |
